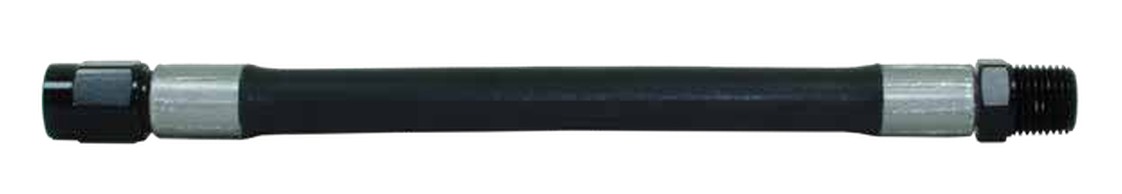

Mechanical Fuel Injection Hose 3/16" Inside Dia. (inch): 0.1875; Inside Dia. (mm): 4.76; Outside Dia. (inch): 0.3600; Outside Dia. (mm): 9.14; Operating Press. Psi: 500; Operating Press. Bar: 34; Burst Press. Psi: 1500; Burst Press. Bar: 103; Weight Kg/M: 0.067; Weight Lb/Ft: 0.045; Bend Radius (inch): 1.60; Bend Radius (mm): 40.4
Part #550-900
- Brand
- Speedflow
- Race system
- AN Hose & Lines
Our mechanical fuel injection hose is manufactured by Parker meeting the SAE 30R3 specification. This hose has a smooth outer cover with a fabric braided inner for strength and flexibility and a inner tube designed to withstand fuels. This
Enquire for price
Add this part to your enquiry. The workshop will confirm fitment, current supply and price.
Workshop responds within 1 business day
Cut to the length you need. The workshop confirms it with your price.
Workshop checked
We confirm the part and application before supply.
Australia-wide
Ask about dispatch or pickup from St Peters.
Product information
Details and fitment
Our mechanical fuel injection hose is manufactured by Parker meeting the SAE 30R3 specification. This hose has a smooth outer cover with a fabric braided inner for strength and flexibility and a inner tube designed to withstand fuels. This hose suitable for use with synthetic lubricants, oils, air and methanol. Temperature Range: -40°C (-40°F) to 93°C (199°F).
Specifications
- Size
- 3/16"
- Inside Dia. (inch)
- 0.1875
- Inside Dia. (mm)
- 4.76
- Outside Dia. (inch)
- 0.3600
- Outside Dia. (mm)
- 9.14
- Operating Press. Psi
- 500
- Operating Press. Bar
- 34
- Burst Press. Psi
- 1500
